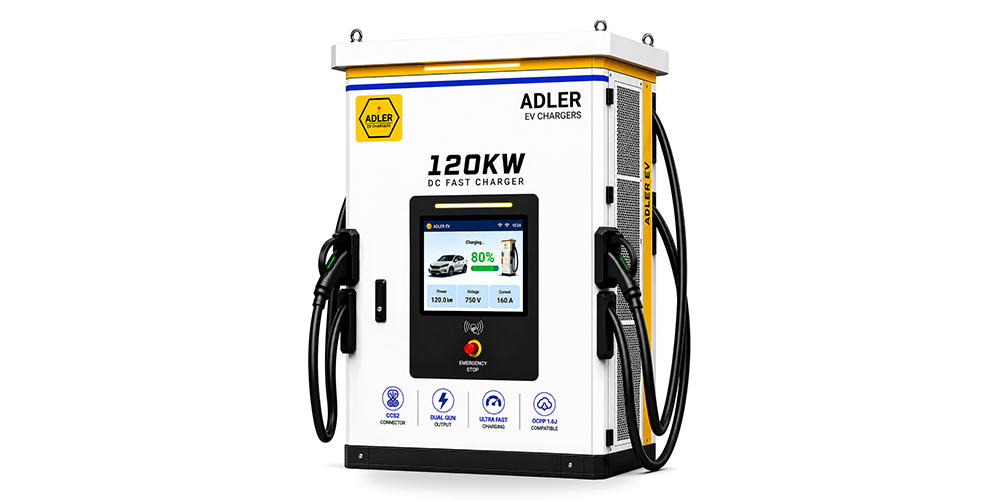

| Product Number | TP4-120-400 |
|---|---|
| Input | 400VAC - 480VAC (3P+N+PE) |
| Frequency | 50 + 5% Hz |
| Output Voltage | 200-1000VDC |
| Output current | 0 to 200 A |
| Connectors | CCS2, CCS2 |
| Electrical Safety Temperature | Temperature Sensors @ Charge Coupler and Power Electronics |
| Parallel Charge Mode (Optional) | 60 KW per Port |
| Efficiency | ≥94% at nominal output power |
| Full Load Power factor | > 0.98 |
| Operating Temperature | -20° C to 55° C |
| Altitude | < 2000m |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) |
| Weight | 480kg |
| Display | 7’’ LCD with touch screen |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader - Optional |
| Dimensions (L x D x H) | 770x710x1865 mm |
| Ingress Protection | IP54 || IK10 |
| Power Electronics Cooling | Air Cooling |
| Charing Protocol Standards | Mode 4 - IEC-61851, ISO-15118, DIN 70121 |
| Length of charging cable | 7m |
| Interface protocol | OCPP 1.6J |
| Communication | Ethernet – Standard, 4G/Wi-Fi Optional |
| Insulation (input-output) | >2.5 kV |
| Electrical Safety: GFCI | RCD 30 mA Type A |
| Electrical Safety: Surge Protection | 20 kA |
| Electrical Safety General | Over Voltage, Under Voltage, Over Current, Missing Ground |
| Electrical Safety: Output Short | Output power disabled when output is short circuited |
| Emergency Stop | Emergency Stop Button Disables Output Power |
| Regulatory Compliance | CE || EMC: EN 61000-6-1:2007, EN 61000-6- 3:2007/A1:2011/AC:2012 |
